Product Item : SRL-Z
Category： Plastic Auxiliary Machine
Views：344
Product description：SRL-Z series mixing unit is mainly suitable for a variety of resins such as polyethylene, polypropylene, polyvinyl chloride and other ingredients, mixing, coloring, drying and ABS, polycarbonate and o
INQUIRY

Product Description

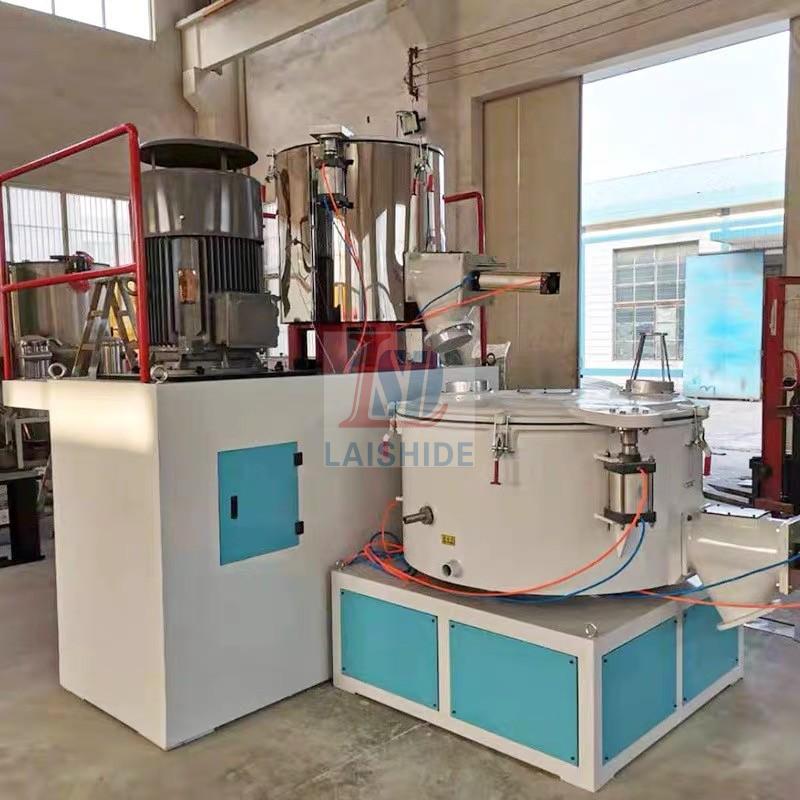

The High speed mixer machine is developed through introducing, digesting and absorbing foreign advanced technology. The vacuum mixing principle is adopted in mixing materials. The electric meters all adopt imported famous ones; It has advantages, such as high auto level, fast mixing, its blades are precisely cast with stainless steel and passed the dynamic and static balancing test. Especial the blades of its cooling machine adopt the most advanced screw stirring structure in the world; there is no dead angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly; its mixing efficiency has reached foreign advanced level.

Technical parameters:

Model	Volume (L)	Effective Volume (L)	Speed (r/min)	Motor power (kw)	Water consumption (t/h)	Heating power (Kw)	Dispatch method
SRL-Z100/200	100/200	75/130	650/1300/130	14/22/11	5	6	air powered
SRL-Z200/500	200/500	150/320	480/1000/110	30/42/11	5.8	6	air powered
SRL-Z300/600	300/600	225/380	480/960/100	40/50/11	6	9	air powered
SRL-Z500/1000	500/1000	374/640	410/830/71	47/67/15	7	9	air powered

Advantage

SRL-Z mixer unit is used in mixing, stirring, drying, coloring and other technique of plastics, rubber，chemicals for daily use. It is an ideal advance equipment of producing plastics plate, pipe, and special-shaped material and degradation plastics.

The High speed mixer for plastic has many advantages, such as fast cooling, discharging thoroughly; its mixing efficiency has reached foreign advanced level.
